NUBWO G07 Wireless Gaming Headset

Please verify that all items listed below are included in your package:

• NUBWO Wireless Gaming Headset
• 2.4GHz USB Wireless Dongle
• 3.5mm Audio Cable
• USB-C Charging Cable
• User Manual

Image: The NUBWO Wireless Gaming Headset, showing the headset itself, the USB wireless dongle, and the 3.5mm audio cable.

3. Product Overview

Familiarize yourself with the headset's components and controls.

3.1 Headset Components

• Adjustable Headband: For a comfortable and secure fit.
• Memory Foam Ear Cushions: Designed for extended comfort during long gaming sessions and passive noise isolation.
• Detachable Noise-Canceling Microphone: Ensures clear voice communication.
• 50mm Audio Drivers: Deliver rich stereo audio with pronounced clarity and deep bass.

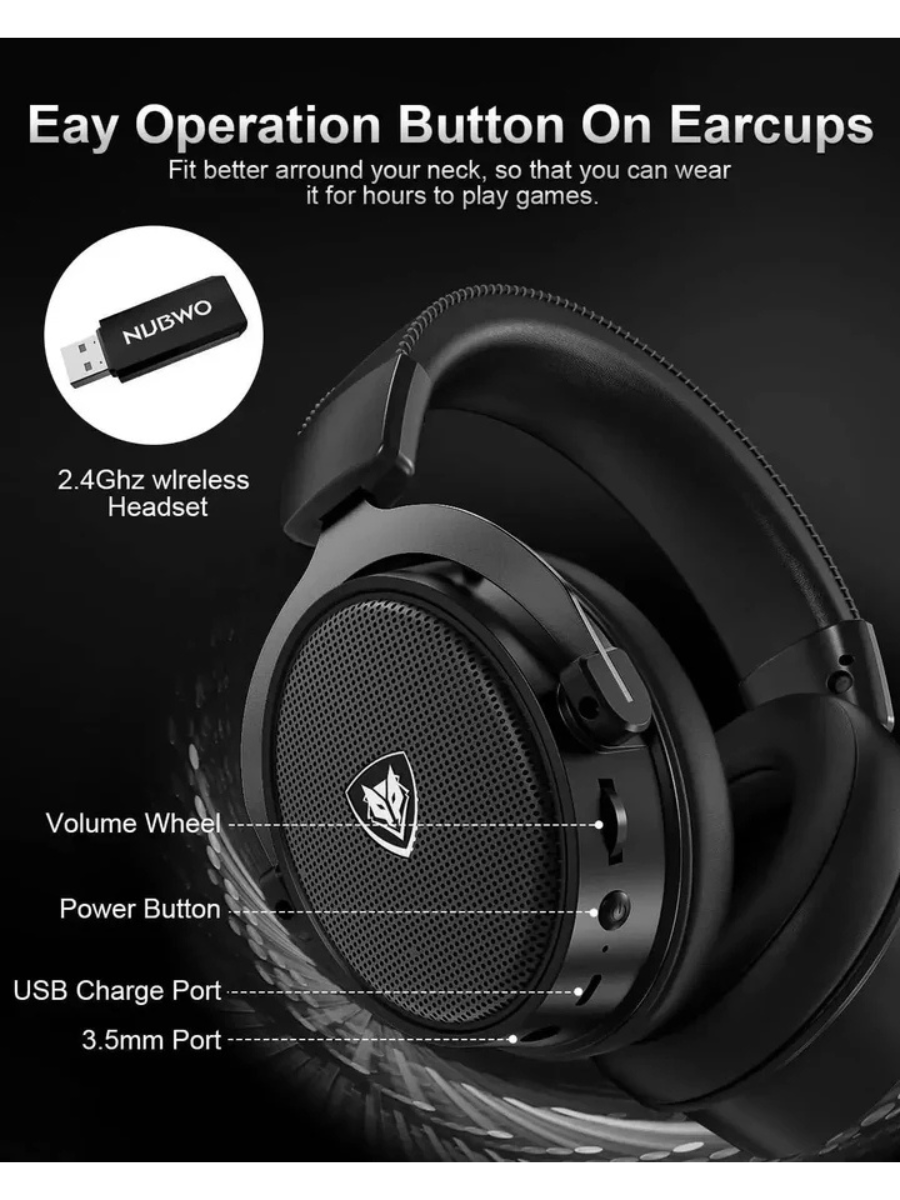

3.2 Controls and Ports

• Power Button: Located on the earcup, used to power the headset on/off.
• Volume Control Wheel: Adjusts the audio output level.
• Microphone Mute Button: Toggles microphone on/off.
• USB-C Charging Port: For recharging the headset's internal battery.
• 3.5mm Audio Jack: For wired connection to compatible devices

4. Setup

Follow these steps to connect your NUBWO Wireless Gaming Headset to your desired device.

4.1 2.4GHz Wireless Connection (USB Dongle)

This mode provides a low-latency, lossless wireless experience, ideal for PC and PlayStation consoles.

1. Insert the 2.4GHz USB wireless dongle into an available USB port on your PC, PS5, or PS4.
2. Power on the NUBWO headset by pressing and holding the Power Button until the indicator light illuminates.
3. The headset will automatically pair with the dongle. A solid indicator light on the headset confirms a successful connection

Image: The NUBWO headset connected wirelessly via 2.4GHz dongle to a PC setup, illustrating low-latency transmission.

4.2 Bluetooth Connection

Use Bluetooth for stable wireless connection with mobile devices, tablets, and Mac computers.

1. Ensure the headset is powered off.
2. Press and hold the Power Button for approximately 5 seconds until the indicator light flashes rapidly, indicating pairing mode.
3. On your device (phone, tablet, Mac), go to Bluetooth settings and select "NUBWO-G07" from the list of available devices.
4. Once connected, the indicator light on the headset will become solid.

4.3 3.5mm Wired Mode

For direct plug-and-play simplicity, especially for Xbox Series consoles where wireless microphone function is not supported.

1. Connect one end of the included 3.5mm audio cable to the 3.5mm audio jack on the headset.
2. Connect the other end of the 3.5mm audio cable to the audio port on your controller (e.g., Xbox controller) or device.
3. The headset will function in wired mode.

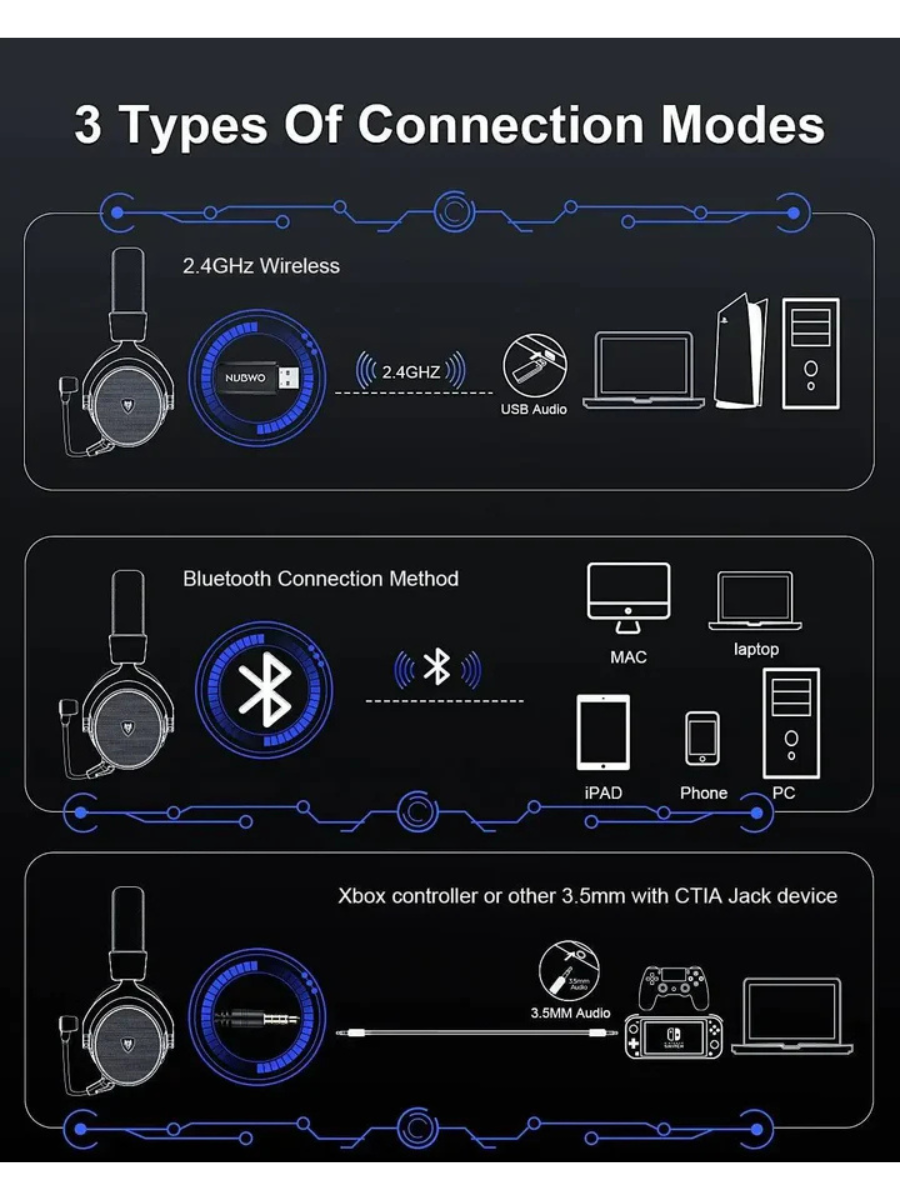

Image: A diagram illustrating the three connection modes: 2.4GHz Wireless (for PC, PS5), Bluetooth (for Laptop, PC, iPad, Phone, Mac), and Wired (for Xbox, Switch, Laptop)

4.4 Charging the Headset

The headset features an extraordinary battery life. A low battery tone alerts you when power dips below 3%.

1. Connect the USB-C charging cable to the USB-C port on the headset.
2. Connect the other end of the cable to a USB power source (e.g., computer USB port, USB wall adapter).
3. The indicator light will show charging status. A full charge takes approximately 4 hours.

5. Operating Instructions

5.1 Power On/Off

To power on the headset, press and hold the Power Button until the indicator light illuminates. To power off, press and hold the Power Button again until the light turns off.

5.2 Volume Control

Rotate the Volume Control Wheel on the earcup upwards to increase volume and downwards to decrease volume.

5.3 Microphone Mute

Press the Microphone Mute Button on the earcup to mute or unmute the microphone. An indicator light on the microphone will show its status (e.g., red for muted).

5.4 Multi-Platform Compatibility

The NUBWO-G07 headset is designed for extensive compatibility:

• PC: Fully compatible via 2.4GHz USB dongle or Bluetooth.
• PlayStation (PS5, PS4): Fully compatible via 2.4GHz USB dongle.
• Mac: Compatible via Bluetooth.
• Nintendo Switch: Audio compatible via 3.5mm wired mode. Microphone function is not supported in this mode.
• Xbox Series: Compatible via 3.5mm wired mode connected to the controller.
• Mobile Phones/Tablets: Compatible via Bluetooth.

6. Maintenance

To ensure the longevity and optimal performance of your headset, follow these maintenance guidelines:

• Cleaning: Use a soft, dry cloth to clean the headset. Do not use harsh chemicals or abrasive materials.
• Storage: Store the headset in a cool, dry place away from direct sunlight and extreme temperatures.
• Battery Care: Avoid fully discharging the battery frequently. Charge the headset regularly, even if not in use, to maintain battery health.
• Microphone Care: Handle the detachable microphone gently. Avoid bending it excessively.

8. Specifications

9. Warranty and Support

NUBWO products are designed and manufactured to the highest quality standards. For warranty information, technical support, or customer service inquiries, please refer to the contact information provided on the product packaging or visit the official NUBWO website. Please retain your proof of purchase for warranty claims.
